First Amlogic S905W2 powered Android TV Box in the world.
OS: Android 11
CPU: S905W2 Quad core ARM Cortex A-35
GPU: Mali G31 MP2 (AV1)
RAM: 1GB/2GB DDR3
Storage: 8GB/16GB/32GB eMMC
Wifi: Dual WiFi 2.4Ghz/5Ghz
SPDIF: Coaxial (Optical)
Tanix Certified PartnerTANIX TX3 MINI+ POWERED BY AMLOGIC S905W2
BEST QUALITY/PRICE RATE ANDROID TV BOX
With the Tanix TX3 Mini Plus you get a powerful, well designed and cost effective Android TV Box. We have also included an LCD panel on the front to make it more attractive.
It will bright in your meeting-room while you enjoy a new TV experience. Take it to your home.

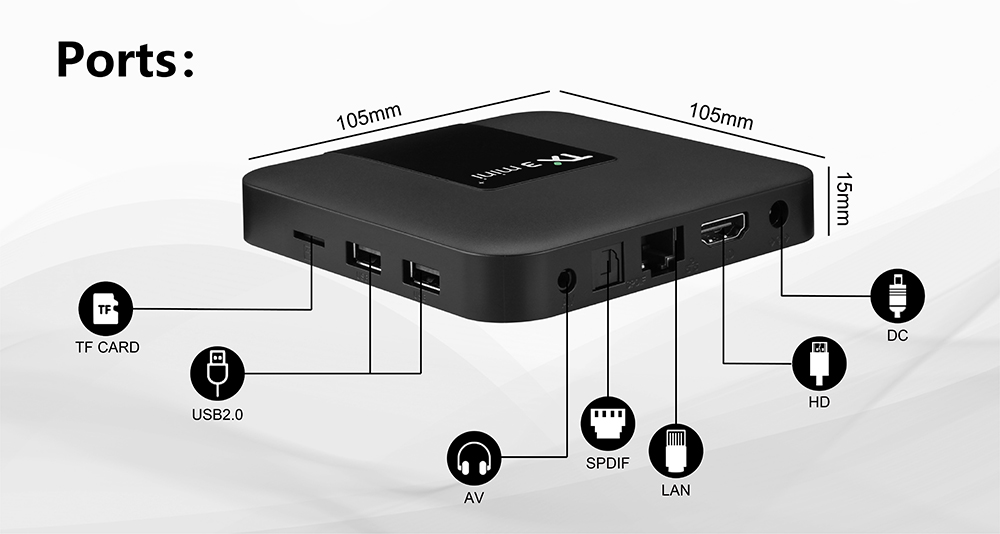

| Interface: | |||
| HDMI Out | HDMI2.0b to support maximum 4K x 2K 60fps display | ||
| USB Port | 2 High speed USB 2.0, support U DISK and USB HDD | ||
| Card Reader | TF Card reader | ||
| Data Output | SPDIF | ||
| AV Out | AV (3 in 1) port | ||
| Communications | Dual WiFi 2.5Ghz + 5Ghz / Bluetooth 4.0 / LAN RJ45 10M/100M | ||
| Power Supply | DC Jack 5V/2A | ||
| Software Spec: | |||
| Operation System | Android 11 | ||
| CPU / GPU | Amlogic S905W2 Quadcore / Mali G31 MP2 | ||
| Decoder Formats | 4K, MPEG1/2/4, H.264, H.265, VP9/VP6/VP8, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6 , RealVideo8/9/10 | ||
| Video Formats | 4K@60fps, AVI, H.264, H.265, VP9/VP6/VP8, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV | ||
| Music format | MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV | ||
| Photo format | JPEG/BMP/GIF/PNG/TIFF | ||
| DLNA | DLNA files sharing | ||
| Language | English/French/German/Spanish/Italian etc. 24 languages | ||
| Network Functions | Skype, Picasa, Youtube, Flicker, Facebook, Online movies, etc. | ||
| Others Parameters: | |||
| Operationg Temperature | -10~40℃ | ||
| Storage Temperature | -20~50℃ | ||
| Humidity environment | 5%-90% (No condensation） | ||
| Package: | |||
| TX3 Mini weight(kg) | 0.15 | ||
| TX3 Mini size (mm) | 105 x 105 x 15mm | ||
| Carton size (30pcs) | 375 x 335 x 357 | ||
| Packaged weight (kg) | 0.4 | ||
| Packaged size (mm) | 160 x 110 x 70 | ||
| Loading for 30HQ | 12.06KG | ||
| Packing accessories: | |||
| 1. User manual 2. 5V/2A adapter 3. HDMI cable 4. Remote control 5. Giftbox packing |
|||
| Remarks: | |||
| Warranty: One year | |||
Tanix Deluxe Edition
Tanix Deluxe Edition
Tanix Deluxe Edition
Tanix Deluxe Edition
What should be the real name of that folder?
Agente oficial: https://goo.gl/ZkSb2T
Hi all,
how can I update the installed KODI version (17.4)? The provided update app downloads the 17.6 version but after unpacking it’s still the old 17.4. I try also to download it ‘by hand’ – no luck, did not install.
Any idea anyone?
TIA
You can try to uninstall your APP first, then install the new one.
First step, upgrade to latest firmware: http://www.tanix-box.com/download-view/tanix-tx3-mini-firmware-full-image-20170829/
Hi Tanix Team,
I bought a TX3 mini 3 days ago and had upgraded the firmware to the latest version. There is this issue of the names of Apps installed and names of devices plugged into the box showing up in strange, unrecognisable characters.
Please advise on how to overcome this issue.
Thank you
What firmware version do you have?
Hi Tanix. I had upgraded my Tanix TX3 Mini with Tanix TX3 Max & Mini – Dual OS Edition 20180109.
Everything is ok but I have some questions.
– Super Root function will be enabled on Tx3 Mini or it’s better I buy a TX3 Max ?
– How can I switch between OS ? When I press POWER button on remote, my box shutdown. I had changed at settings Power Function from Shutdown to Sleep and it just sleep. How can I change OS ?
tks
Dias
There are few differences between Mini & Max. The “Max” features bluetooth and its hardware components are a little better. But you can use same firmwares.
To switch between systems, you need a “long press”
There is a new version (BETA yet): http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/699394-tanix-tx3-max-mini-dual-os-edition-libreelec-android-s905w?p=704664#post704664
Noted your comment.
I think KODI in Android is showing the UI resolution instead video layer resolution. We have tested KODI video layer resolution and it could play 1080p. We have used a test video, you can see here: https://www.youtube.com/watch?v=DkBX8U5khjo
For now there is not solution. We recommend you using a mouse or keyboard with touchpad.
Netflix APP is designed by them… difficult to fix.
First of all, upgrade your box to our latest version: http://www.tanix-box.com/download-view/tanix-tx3-mini-firmware-full-image-20170829/
It could be a hardware problem too.
For those expert users, we have an small update. Then you can install Xposed Framework:
http://www.tanix-box.com/download-view/tanix-tx3-max-mini-xposed-update/
If you want to try LibreELEC, we have a DUAL BOOT EDITION of our firmware. It is running on both TX3 Mini and TX3 Max.
http://www.tanix-box.com/download-view/tanix-tx3-max-mini-dual-os-edition-libreelec-android-firmware/
KODI should play up to 4K video. Maybe some configuration…? Other users tried and they said it is working normally.
Keep an eye here next days: https://forum.libreelec.tv/thread/10024-tanix-tx3-mini-with-amlogic-s905w-cpu-libreelec/
Still working…
I’m interested in buying this box for replacement for my Raspi working on LibreElec. As you already know, Raspi can’t play H265 movies. But, if TX3 can’t play anything beside SD why you advertise it for playing all formats OOB? It is not acceptable for me to buy device which can’t play even FHD movies not to mention H265 FHD movies without flashing it with some Beta firmware
It can play up to 4K@30fps on its video layer. Have you tried?
About the BETA firmware, it is just that, a BETA version for our BETA testers and everybody who want to try and give us feedback. That is the best way to improve our software and polish every update before release it as “Official Stable”.
All this talk about the 720p (what is in fact a downscaling) comes from a bug related to the Amlogic’s SDK. We found it (many thanks to BETA testers) and we fixed already. New TX3 Mini & Max productions are being flashed with this correction.
What can we do with the TX3 Mini that are already out? We just can update them.
I am sure if you are a Raspi user, it will be really easy for you to download a ZIP file, copy to a USB memory and do 4 mouse clicks.
By the way, our own “LibreELEC & Android dual boot from eMMC” firmware is almost ready (with WiFi support). Maybe you will be interested.
Thanks for your comments.
Try to update this BETA firmware: http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/662654-tanix-tx3-mini-amlogic-s905w-new-soc-android-7-1-1?p=697203#post697203
http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/662654-tanix-tx3-mini-amlogic-s905w-new-soc-android-7-1-1?p=697203#post697203
Try this BETA firmware
What does mean – *Upgrade from TF card or USB memory by using “Update” APP- Can I use USB pendrive(USB flash memory) connected to USB port to update box?
Yes. You also can check the video about how to open the APP and choose the file.
OPTION A) Upgrade from TF card or USB memory by using “Update” APP
1. Copy the .ZIP file to your TF Card (or USB memory)
2. Insert the card (or connect the USB memory) in the TX3 Mini.
3. Open “Update” APP (already preinstalled).
4. Press “Select” button and choose the .ZIP file
5. Press “Update” button and wait. The box will reboot and upgrade.
– If something goes wrong, try again.
Is your HDD external powered? It is possible the TV Box can not supply enough power by a USB port and it needs external.
You can try this: http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/662654-tanix-tx3-mini-amlogic-s905w-new-soc-android-7-1-1?p=691375#post691375
From TF card or USB memory
Try this BETA firmware: http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/662654-tanix-tx3-mini-amlogic-s905w-new-soc-android-7-1-1?p=691375#post691375
Yes, you can access Google Playstore. And also can install app manually if you wish.
That is an .img file for flashing by USB burning tool, we have a tutorial at our blog (for TX5 Pro, but that is same way).
I think we are going to release .zip files too from now.
Amazing product and amazing design, love it!
From website you have free shipping worldwide by post.
К сожалению, данное устройство не поддерживает FHD Youtube, я огорчен, прошивка не помогает.
Unfortunately, this device does not support FHD Youtube, I am disappointed the firmware does not help.
What firmware version is running on your box?
http://freaktab.com/forum/tv-player-support/amlogic-based-tv-players/s905x/662654-tanix-tx3-mini-amlogic-s905w-new-soc-android-7-1-1?p=690670#post690670
Hi, Netflix is going Standard Definition … is there any FW upgrade planned to have it in HD?
Netflix THD (1080p) and up requires Widevice L1 (not supported by S905W) and an agreement with this company. It can’t be fixed just by a FW upgrade.
TX3 Mini does not support Bluetooth. It must be a typo.
New “TX3 Max” will support bluetooth and we removed the LCD display:
http://www.tanix-box.com/project-view/tanix-tx3-max-android-tv-box-s905w-android-7-1-wifi-bluetooth/
Available after 2 weeks
Version with “Tanix” logo is limited to some few distributors. Both are same thing.
Hi Team, I purchased a Tanix TX3 mini box from Aliexpress. It shows Tanix printed on top, not TX3 mini. How can I make sure that it is an original product. Please help me.
Hi, it is original. The device with “Tanix” logo is limited to few distributors while others have “TX3 Mini” logo. But both are same thing.
You can try Cetus Play…
Why it does not support more than 720p video on youtube and KodI?
Hi, Kodi is showing the UI resolution. Tx3 Mini UI is 720p for performance reasons, but this is just the graphics layer. Video layer is working up to 4K@30fps.
About youtube limitation, is has been fixed, you can flash the latest firmware: http://www.tanix-box.com/download-view/tanix-tx3-mini-firmware-full-image-20170829/
Hello, is that device compatible with Netflix?
Yes
Yes is it. What are the functions you expect to use from HDMI CEC?
hello do you send with tracking number to Portugal ?
Yes, it is registered post always.
Я просто балдею от этого нового TV box’а, и стех пор, как он мне попал в руки, я бы хотел продолжить им пользоваться как можно дольше!!
Hi, does the power supply come with a European plug? Thanks
YES, we will send you the correct adapter for your country.
As talked by Skype I have ordered five TX3 Mini to be shipped as soon as this new model is ready. Please, do not forget my order.
PD: Thanks for your good support.
Hi Carl, glad to know you have experienced a good support from our guys at Skype. Of course, we are not going to forget your order and instructions (they already informed our engineers about your project details).
Many thanks for your confidence.
Can I connect a mouse to this smart box?
Hi Adam,
YES, you can connect any USB mouse. Also wireless mice and keyboards.
Están chévere las cajas android. Espero recibir mis equipos pronto acá en Colombia.
We are shipping worldwide, thanks for your order!
Thanks for your good support by whatsapp. Finally I ordered two pieces. Hope my order is all right.
Regards
Hi Daniel, we just checked your order, everything is ok.
Many thanks again for your order!
Are you shipping TX3 Mini to France?
Yes, we are shipping worldwide.
Love TX3 Mini, great job Tanix.
Thank you!
Hi, I would like to buy a Tanix tx3 mini. Can I pay by Paypal?
Thanks
YES, you can pay by PayPal.
What KODI version comes pre-installed?
KODI 17.3
Beautiful design, hope my two units will arrive soon.
Ordered yesterday. Can´t wait to receive it!
